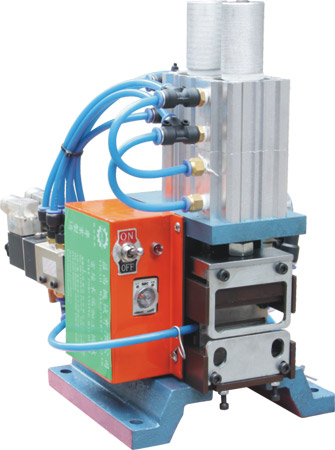

YG-4F直立式雙刀剝皮機
特點說明 改良傳統電腦心線剝皮用腳踏手拉方式，演進成前夾后退方式，節省體力之
最佳機型。 操作時采平面左右移動方式，縮短機、夾座距離，使電腦線或特殊短線均可
本機使用。 特殊結構，速度快，電腦線及一般電線，半剝、全剝，調整容易為電線末端
加工最新機種。 雙刀雙氣缸、雙電磁閥，配過濾器，延時可讓剝皮更加穩定，可剝HDMI等
高要求線材和普通機剝不到的
Explanation of features It changes the foot-stepping and hand-drawing mode of traditional computer
stripping to front-clipping and rear-reversing mode. It is the best type for
labor-saving. It adopts horizontal left-and-right movements to shorten the distance
between wire and clip seat. It is applicable to computer wire and special
short wire. It adopts a special structure and boasts the advantages of high speed and
convenient adjustment. It is applicable for half-stripping and whole-stripping
of computer wire and common wire. Thus, it is the latest type for processing
of wire end. It is equipped with double-cylinder, double-solenoid valve, and filter, which
can make the stripping more stable. It is applicable to HDMI and other wire
materials with high requirements, as well as those that cannot be managed
技術參數Technical parameters | 型號 | Model | YG-4F | | 電源 | Power | 5--7kgf(需使用清潔干燥空氣) | | 空氣壓力 | Air pressure | 5Kgs | | 剝皮長度 | Stripping length | Max.15mm | | 氣缸尺寸 | Cylinder size | 主64x64x60--1 副52x52x100--2 | | 外觀尺寸 | External dimensions | 280mmX180mmX270mm | | 重量 | Weight | 9.5Kg |
|
